The Dashboard Pivot

The Pivot feature lets you transform your company's raw inventory data into clear, interactive summaries. You can filter, sort, and group across any dimension, turning complex datasets into actionable insights.

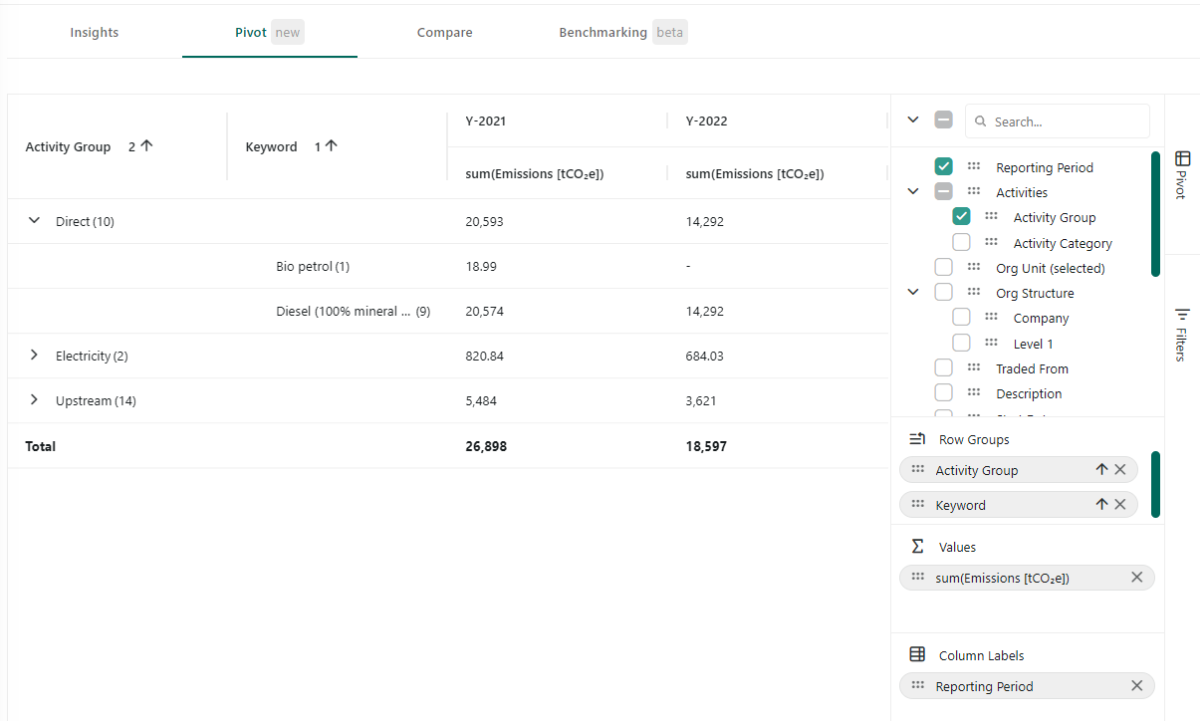

Pivot views, tables, and charts

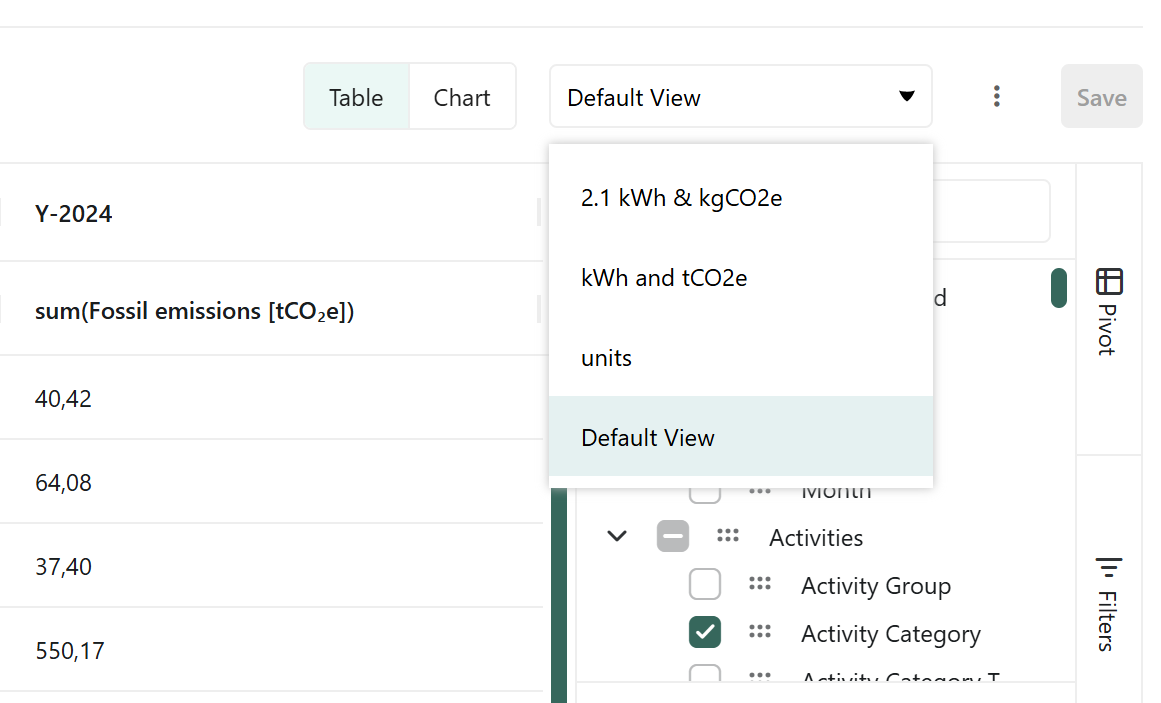

Every pivot can be viewed as either a table or a chart, by clicking the buttons at the top of the page. Next to these, there is a dropdown where you can choose from your previously saved pivot views. Any change made to the currently active view can be saved either by clicking "Save" to update the current view immediately, or by going into the more menu (the three vertical dots) and choosing "Save as new".

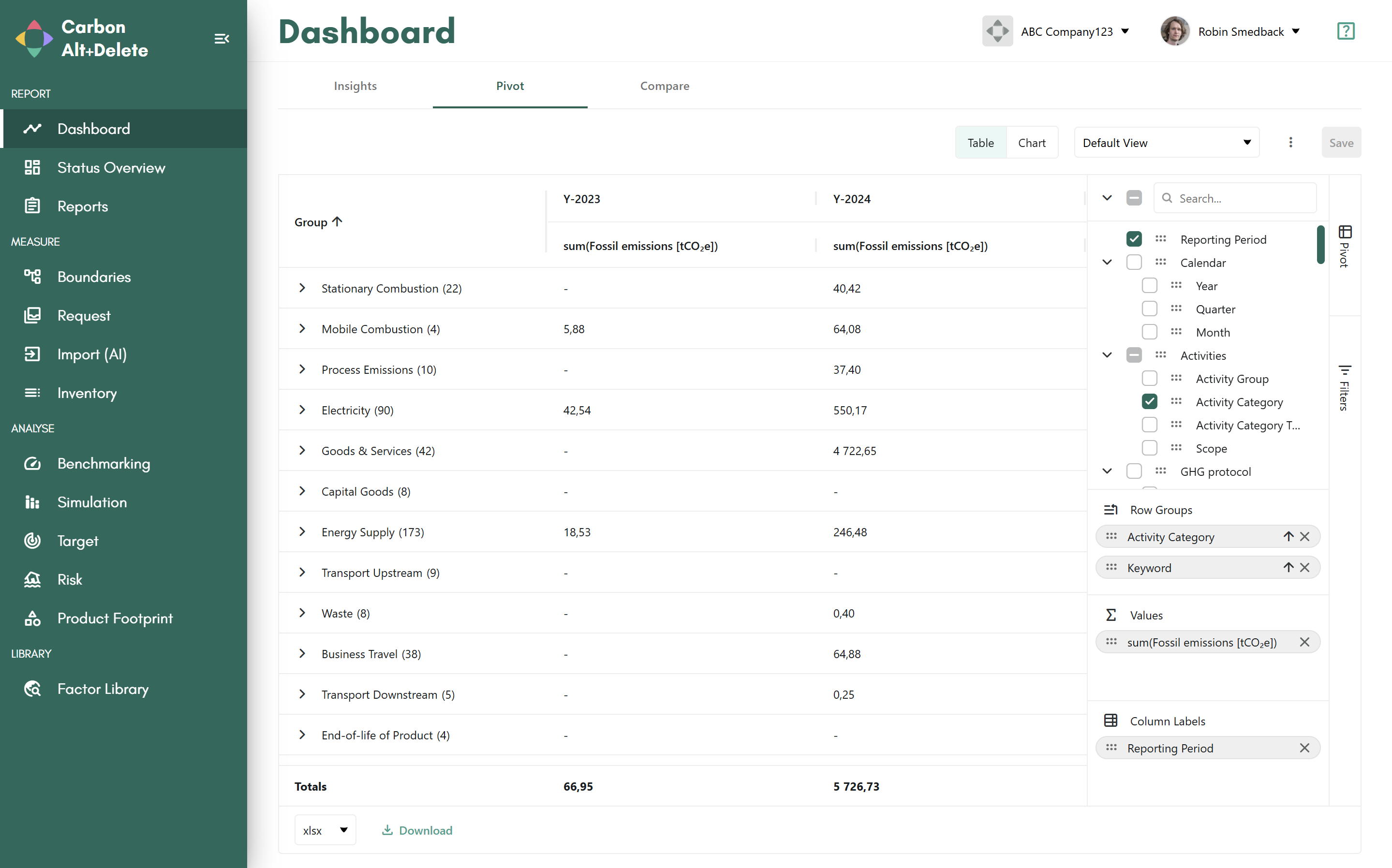

To the right of the table to you have pivot controls and pivot filters. If no filters are applied, all inventory lines across all reporting periods are pulled into the view.

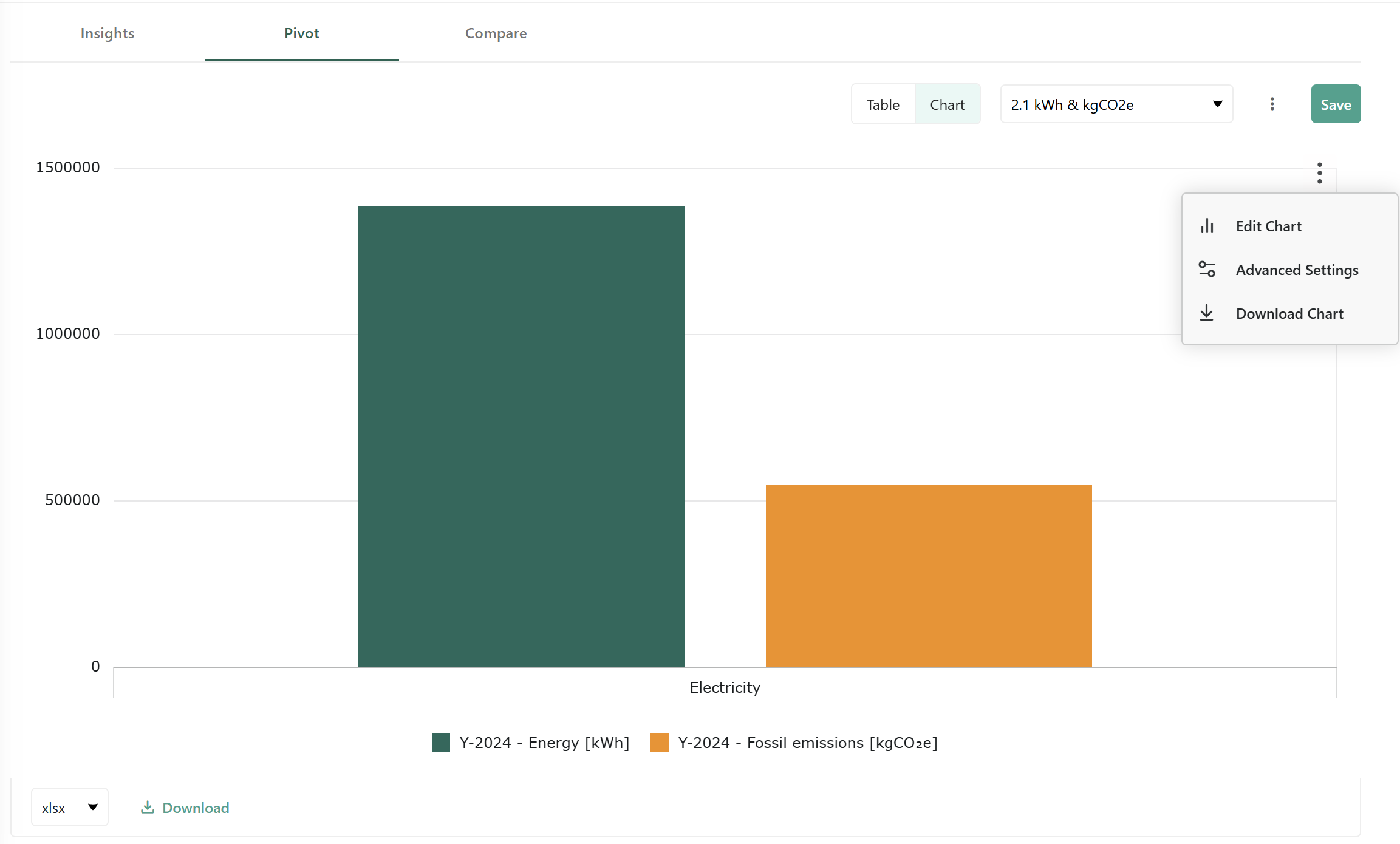

When a pivot is viewed as a chart, you have access to additional controls from the more menu in the upper right corner in the chart. You can edit the chart, change advanced settings, or download the chart as an image. In the bottom left corner you also have access to download the data in XLSX or CSV format.

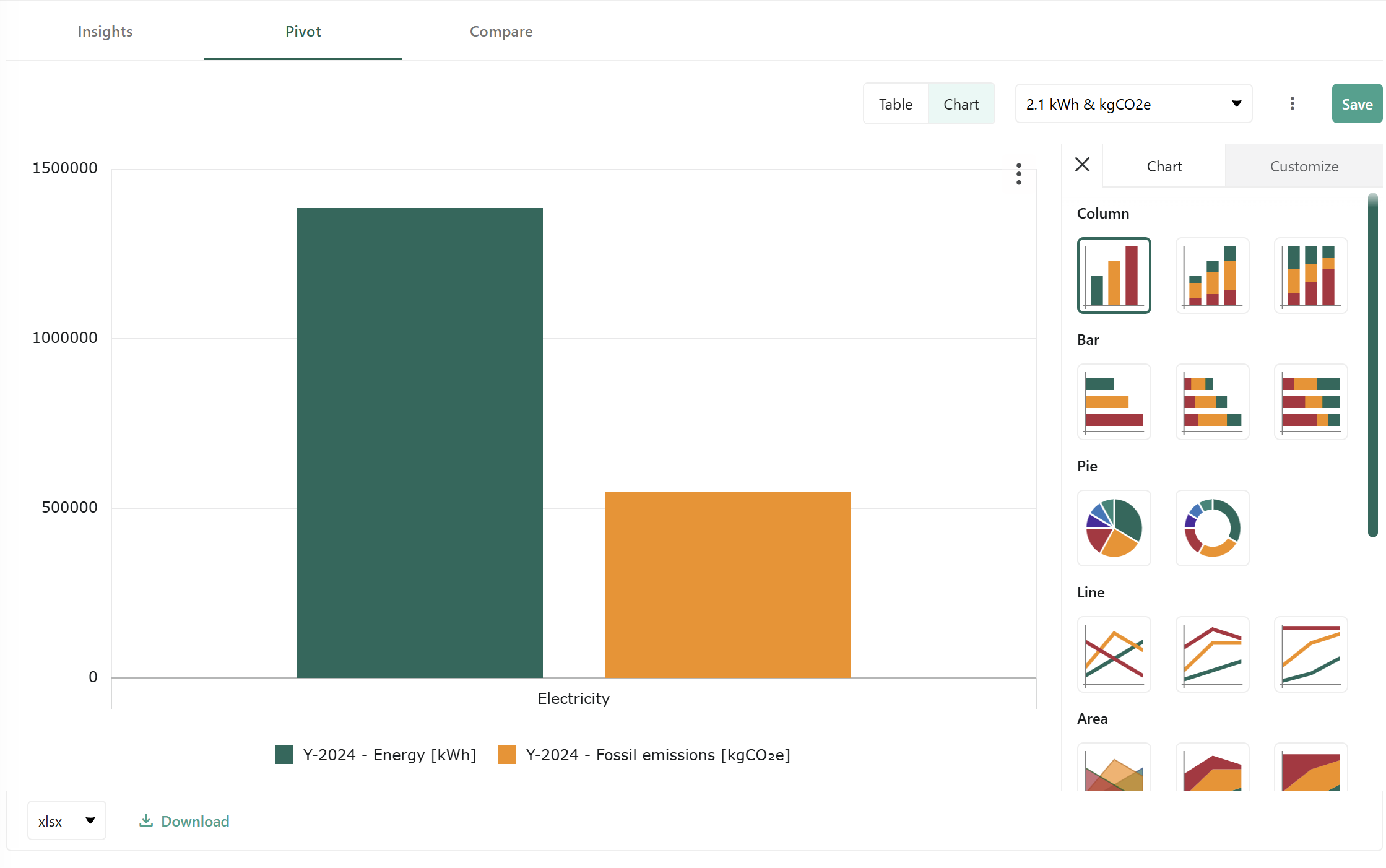

By editing a chart you get the option of choosing from a wide variety of charts. The different chart types supported are: column, bar, pie, line, area, x y (scatter), hierarchical, and combination. All of the charts are also fully customizable with regards to legend, series, titles, and more.

Example pivots

The possibilities are endless when it comes to the pivot views you decide to build. Below follows just a few examples of the flexibility offered in this view.

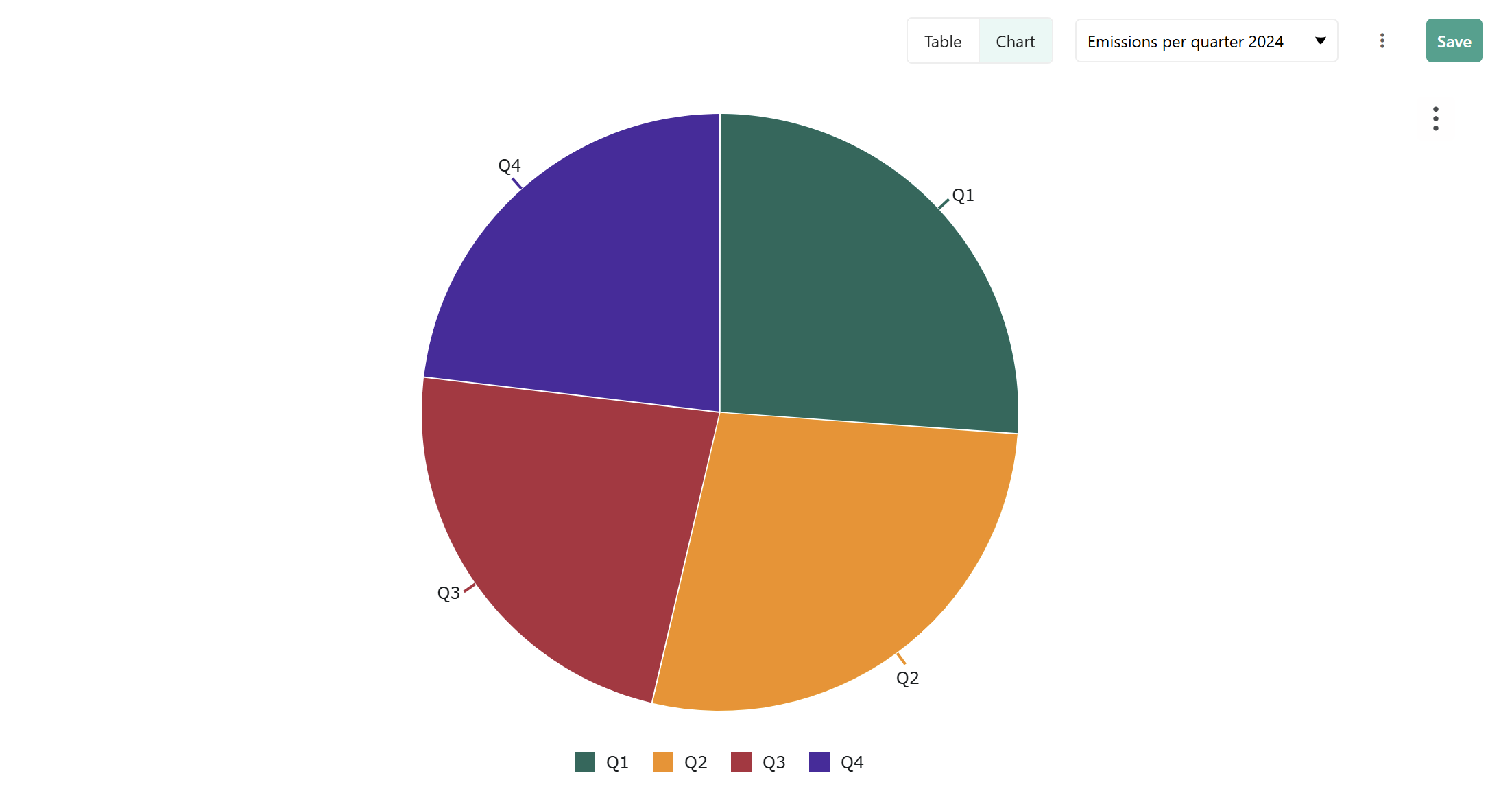

Emissions per quarter

A simple pie chart showing the fossil emissions per quarter for a specific reporting period.

Build it yourself:

• Filter
  • Preferred reporting period
• Row Groups
  • Quarter
• Values
  • Fossil emissions [tCO₂e]
• Column Labels
  • Reporting Period

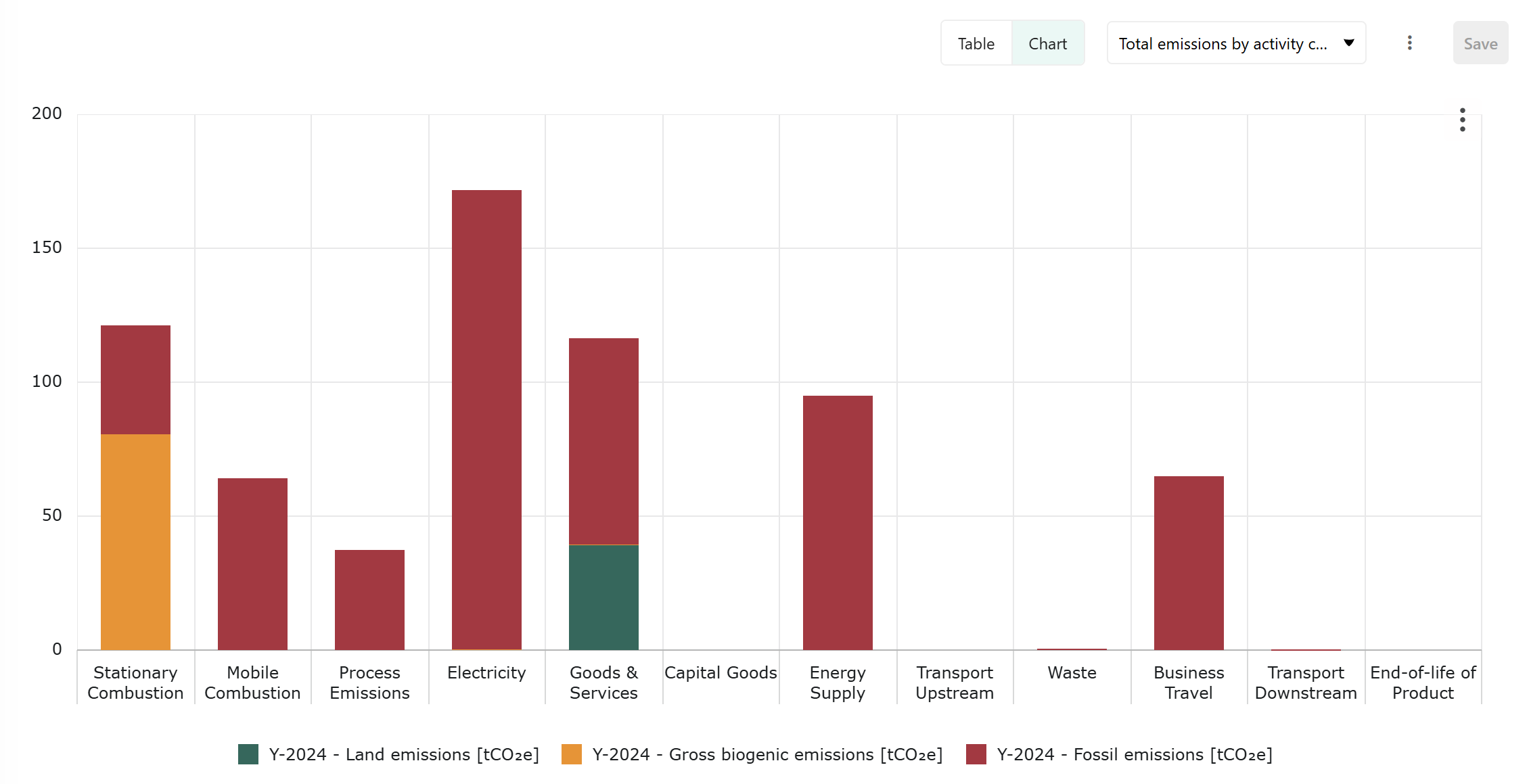

Total emissions by activity category

A stacked bar chart showing total emissions (fossil, land, and gross biogenics) across all activity categories.

Build it yourself:

• Row Groups
  • Activity Category
• Values
  • Land emissions [tCO₂e]
  • Fossil emissions [tCO₂e]
  • Gross biogenic emissions [tCO₂e]
• Column Labels
  • Reporting Period

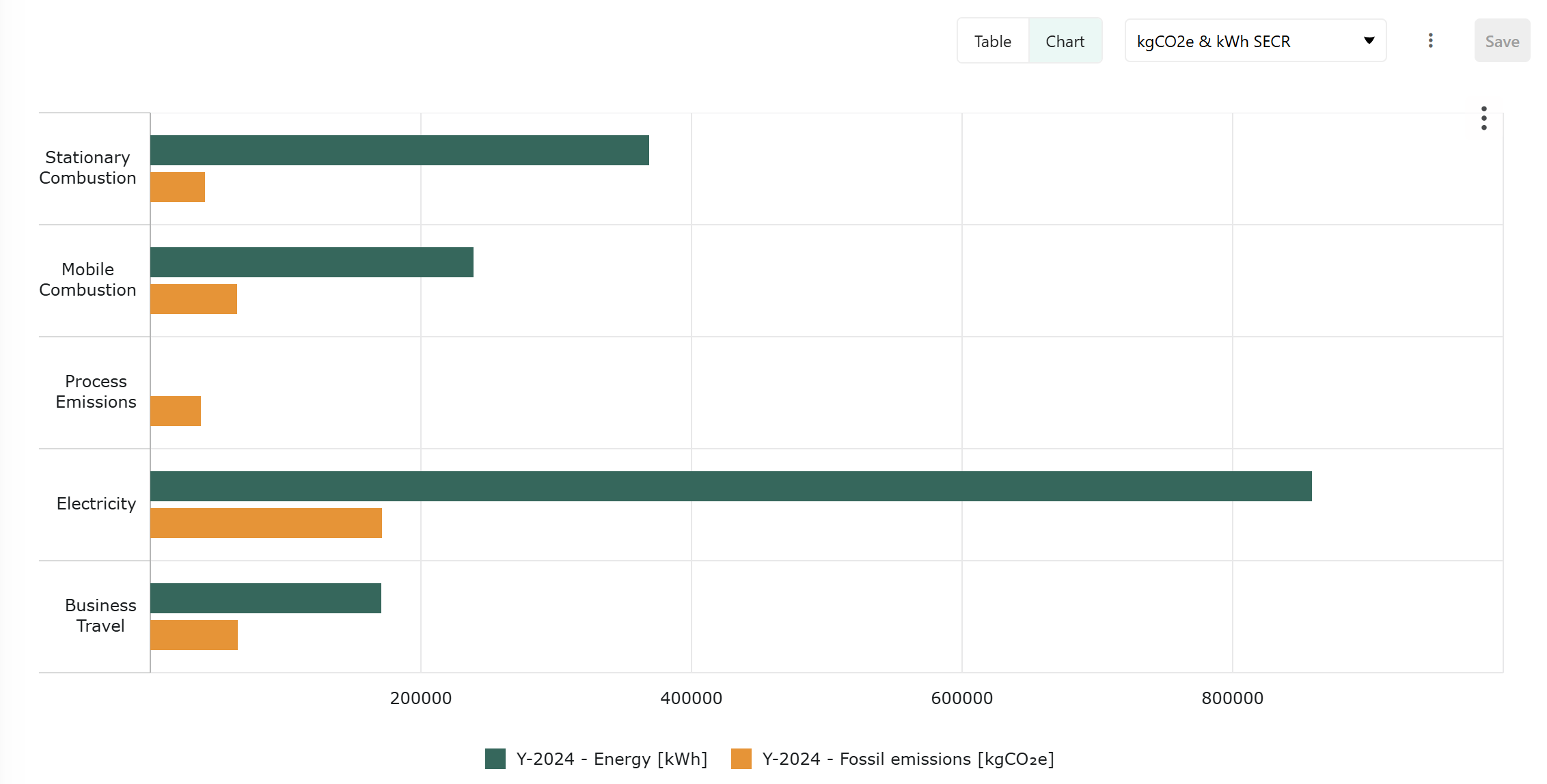

Emissions and energy use for SECR

A horizontal bar chart showing the emissions caused and energy used for scope 1, scope 2, and scope 3 business travel (grey fleet) for SECR.

Build it yourself:

• Filter
  • Preferred reporting period
  • All scope 1, scope 2, and scope 3 business travel
• Row Groups
  • Activity Category
• Values
  • Fossil emissions [kgCO₂e]
  • Energy [kWh]
• Column Labels
  • Reporting Period

Dimensions available in Pivot

Below follows a complete list of available dimensions for use in your pivot views. Bold values are dimension groups which when selected selects all child dimensions. All values are available in both the pivot controls and as filters.

• Reporting Period
• Calendar
  • Year
  • Quarter
  • Month
• Activities
  • Activity Group
  • Activity Category
  • Activity Category Type
  • Scope
• GHG protocol
  • GHG protocol reference group
  • GHG protocol reference
• ISO 14064-1
  • ISO 14064-1 reference group
  • ISO 14064-1 reference
• Org Unit (selected)
• Org Structure
  • Company
  • Level 1
  • Level 2
  • Level 3
• Traded From
• Description
• Start Date
• End Date
• Keyword
• Detail
• Units
  • Unit Class
  • Unit
• Values
  • Emissions
    • Fossil emissions [kgCO₂e]
    • Fossil emissions [tCO₂e]
    • Fossil emissions [ktCO₂e]
    • Fossil emissions [MtCO₂e]
    • Land emissions [kgCO₂e]
    • Land emissions [tCO₂e]
    • Land emissions [ktCO₂e]
    • Land emissions [MtCO₂e]
    • Land removals [kgCO₂e]
    • Land removals [tCO₂e]
    • Land removals [ktCO₂e]
    • Land removals [MtCO₂e]
    • Gross biogenic emissions [kgCO₂e]
    • Gross biogenic emissions [tCO₂e]
    • Gross biogenic emissions [ktCO₂e]
    • Gross biogenic emissions [MtCO₂e]
    • Gross biog. removals [kgCO₂e]
    • Gross biog. removals [tCO₂e]
    • Gross biog. removals [ktCO₂e]
    • Gross biog. removals [MtCO₂e]
  • Factors
    • Factor - Fossil Emissions [kgCO₂e/unit]
    • Factor - Land Emissions [kgCO₂e/unit]
    • Factor - Land Removals [kgCO₂e/unit]
    • Factor - Gross Emissions [kgCO₂e/unit]
    • Factor - Gross Removals [kgCO₂e/unit]
  • Volume [-]
  • Energy [kWh]
• Custom Fields
  • [if available]
• Id
